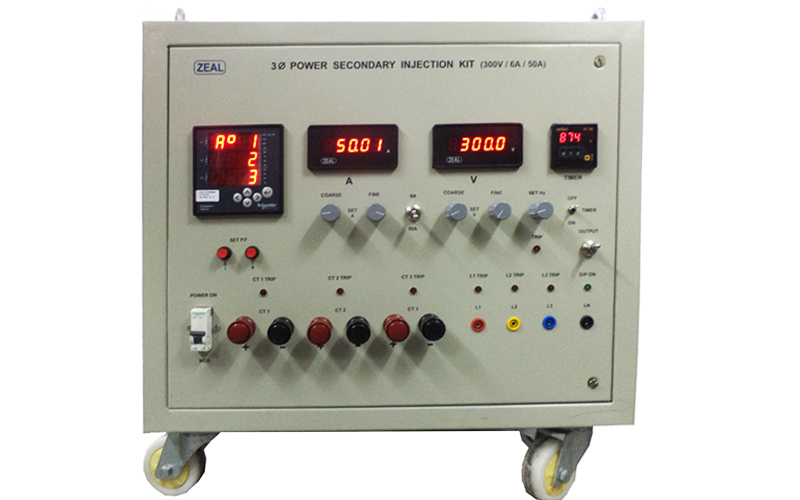

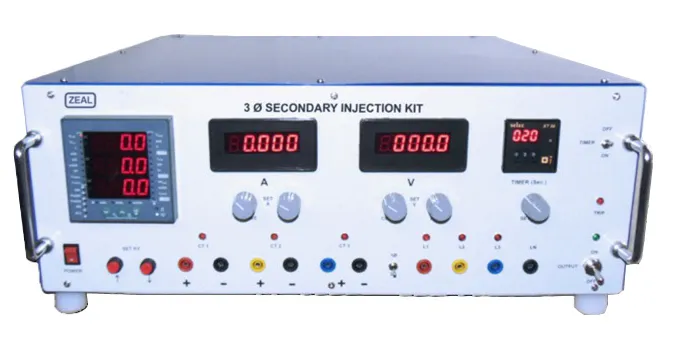

We are Manufacturer, Supplier, Exporter of Three Phase Secondary Injection Kit and we are also specialized in Calibration Services ( Calibrator ). Our setup is situated in Pune, Maharashtra, India.
| Make | ZEAL |
| Model | ZM3 Ø SIK |
| Input | 230 VAC / 110 VAC ( 50 / 60 Hz ) |
Output Voltage Range |
0 to 300 V (L-N) or 0 to 520 Phase to Phase |
| Output Current Range |
1. 0 to 6 A per phase 2. 6 A to 50 A per phase |
| Mode | 3 Phase, 4 Wire & Single Phase |
| Output Ports | Vr, Vy, Vb, -N & Ir ( Hi, Lo ), Iy ( Hi, LO ), Ib ( Hi, Lo ) |
| Power Factor Range | 0.5 Lag to Unity to 0.5 Lead. |
| Compliance | 20VA, at FS on V ranges, 250VA, at FS on A ranges |
| Frequency | 45 to 60Hz |
| Timer | With programmable timer counter to keep Output ON for fix duration. Duration Programmable in minute |
| Controls | Voltage, Current & Frequency setting by multiturn potentiometer, PF by push button keys, Timer by thumbwheel switch. |
| Metering | Digital Voltmeter, Digital AC Ammeter, Additional Power Analyzer Meter to indicate Phase to Phase Voltage, Phase to Neutral Voltage, Current of Each phase, Frequency, PF, W, VA, VAr, VAHr, Whr. Programmable current display to accommodate CT ratio |
| Accuracy | ± 0.15% ± 10 Digit for Voltage & Current, ± 0.05% PF, ± 0.3% for W, ± 0.02% timer |
| Sinusoidal Outputs | THD < 1.5% |
| Protections | Over Load & Short Circuit |
