DC Regulated Power Supply ( Power Supplies )

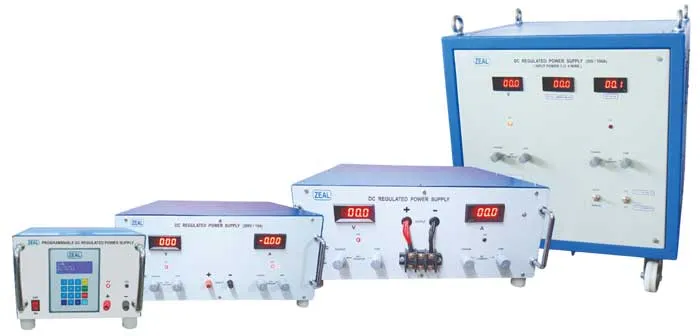

DC Regulated Power Supply

We are Manufacturer, Supplier, Exporter of DC Regulated Power Supply. This product also known as DC Power Supply. We are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

Technical Specification

Model ZMPS
Input Power Supply 230V AC, ±10 % @ 50Hz Single Phase or 415V AC, ±10 % @ 50 Three Phase
Load Regulation Better than ±0.1%
Line Regulation Better than ±0.1%
Ripple & Noise Better than ±0.1% rms
Accuracy ±0.5% , ±2 digit
Display 3½ digit 7 segment red LED display for Voltage
3½ digit 7 segment red LED display for Current
Controls Voltage and Current setting by coarse & fine potentiometer
Power ON/OFF Switch
Protection Protection against overload & short circuit by CC mode

Typical Ranges Are Available

Input Power 230V ±10% 50Hz Single Phase Input Power : 415V ±10% 50 Hz 3 Phase 4 Wire
Model Rating Model Rating
ZMPS15-50-15V / 0-5AZMPS30-1500-30V / 150A
ZMPS30-20-30V / 0-2AZMPS30-2000-30V / 200A
ZMPS30-50-30V / 0-5AZMPS30-4000-30V / 400A
ZMPS30-100-30V / 0-10AZMPS50-80A0-50V / 80A
ZMPS30-150-30V / 0-15AZMPS50-100A0-50V / 100A
ZMPS30-200-30V / 0-20AZMPS50-200A0-50V / 200A
ZMPS30-300-30V / 0-30AZMPS60-60A0-60V / 60A
ZMPS30-500-30V / 0-50AZMPS60-100A0-60V / 100A
ZMPS30-1000-30V / 0-100AZMPS60-200A0-60V / 200A
ZMPS60-50-60V / 0-5AZMPS60-400A0-60V / 400A
ZMPS60-100-60V / 0-10AZMPS80-500-80V / 50A
ZMPS60-200-60V / 0-20AZMPS80-600-80V / 60A
ZMPS60-500-60V / 0-50AZMPS80-800-80V / 80A
ZMPS80-100-80V / 0-10AZMPS100-50A0-100V / 50A
ZMPS80-200-80V / 0-20AZMPS100-100A0-100V / 100A
ZMPS80-300-80V / 0-30AZMPS100-200A0-100V / 200A
ZMPS100-50-100V / 0-5AZMPS150-30A0-150V / 30A
ZMPS100-100-100V / 0-10AZMPS150-50A0-150V / 50A
ZMPS100-200-100V / 0-20AZMPS200-15A0-200V / 15A
ZMPS300-50-300V / 0-5AZMPS200-30A0-200V / 30A
ZMPS300-100-300V / 0-10AZMPS300-10A0-300V / 10A
ZMPS500-20-500V / 0-2AZMPS300-20A0-300V / 20A
ZMPS500-50-500V / 0-5AZMPS500-5A0-500V / 5A
ZMPS1000-2A0-1000V / 0-2AZMPS1000-5A0-1000V / 5A

Note : We can customize Resistance Measurement range as per requirement
