AC DC High Voltage Breakdown Testers, HV, Calibration Services, India

Description :

We are Manufacturer, Supplier, Exporter of AC / DC High Voltage Breakdown Tester and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India. These products are known by other names like Hi Pot Testers, Voltage Withstand Capability Testers or simply High Voltage Testers also Designed with better features and accuracy, our offered range of Breakdown Tester is meant for testing the electrical insulation ability and electric strength. ZEAL make testers are ideal for performing high voltage breakdown tests in production, in the laboratory, and for type approvals also. The tester of this category is robustly designed. Standard accessories of the tester include HV test probe, fully insulated crocodile clip & mains cord.

AC High Voltage Breakdown Tester

Technical Specification

Make	Zeal
Input Power	230 VAC, 50 Hz / 110 VAC, 60 Hz
Voltage Range	0 to 5kV AC
Leakage Current Range	0 to 20mA
Control	Test voltage setting by knob of variac, Leakage Current can be set by using Potentiometer & Press to set switch on mA Meter
Programmable Timer	0 to 999 second with timer ON/OFF switch.
Features	• Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch
Metering	3½ Digit 7 Segment Display
Accuracy	For kV : ± 2% FS ± 3 digit, For mA : ±1.5 % reading ± 2 dgt, Timer : 0.5 Seconds

AC High Voltage Breakdown Tester

Rating	Model Series
5kV/10mA	ZMHV5A-10
5kV/20mA	ZMHV5A-20
5kV/30mA	ZMHV5A-30
5kV/50mA	ZMHV5A-50
5kV/100mA	ZMHV5A-100
5kV/500mA	ZMHV5A-500
10kV/20mA	ZMHV10A-20
10kV/30mA	ZMHV10A-30
10kV/50mA	ZMHV10A-50
10kV/100mA	ZMHV10A-100
12kV/400mA	ZMHV12A-400

Rating	Model Series
20kV/20mA	ZMHV20A-20
20kV/30mA	ZMHV20A-30
20kV/50mA	ZMHV20A-50
20kV/100mA	ZMHV20A-100
20kV/500mA	ZMHV20A-500
30kV/20mA	ZMHV30A-20
30kV/30mA	ZMHV30A-30
30kV/50mA	ZMHV30A-50
30kV/100mA	ZMHV30A-100
30kV/500mA	ZMHV30A-500

DC High Voltage Breakdown Tester

Technical Specification

Make	ZEAL
Power	230V AC, 50 Hz
Voltage Range	0 to 5kV DC
Leakage Current Range	0 to 20mA
Trip Current setting	by press to set switch & potentiometer, using digital mA meter Test Voltage Range Settable by knob of Variac.
Programmable Timer	0 to 999 second with timer ON/OFF switch.
Metering	3 ½ digit Digital kV and mA meter
Resolution	0.01kV, 0.1mA respectively
Accuracy: Kv	2% of reading ± 3 dgt, mA: 1.5% of reading ± 2 dgt,
Timer	± 0.5 second
Features	• Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch
Indications	Trip, HV On, HV Off

DC High Voltage Breakdown Tester

Rating	Model Series
5kV/10mA	ZMHV5D-10
5kV/20mA	ZMHV5D-20
5kV/30mA	ZMHV5D-30
5kV/50mA	ZMHV5D-50
5kV/100mA	ZMHV5D-100
5kV/500mA	ZMHV5D-500
10kV/20mA	ZMHV10D-20
10kV/30mA	ZMHV10D-30
10kV/50mA	ZMHV10D-50
10kV/100mA	ZMHV10D-100

Rating	Model Series
20kV/20mA	ZMHV20D-20
20kV/30mA	ZMHV20D-30
20kV/50mA	ZMHV20D-50
20kV/100mA	ZMHV20D-100
20kV/500mA	ZMHV20D-500
30kV/20mA	ZMHV30D-20
30kV/30mA	ZMHV30D-30
30kV/50mA	ZMHV30D-50
30kV/100mA	ZMHV30D-100
30kV/500mA	ZMHV30D-500

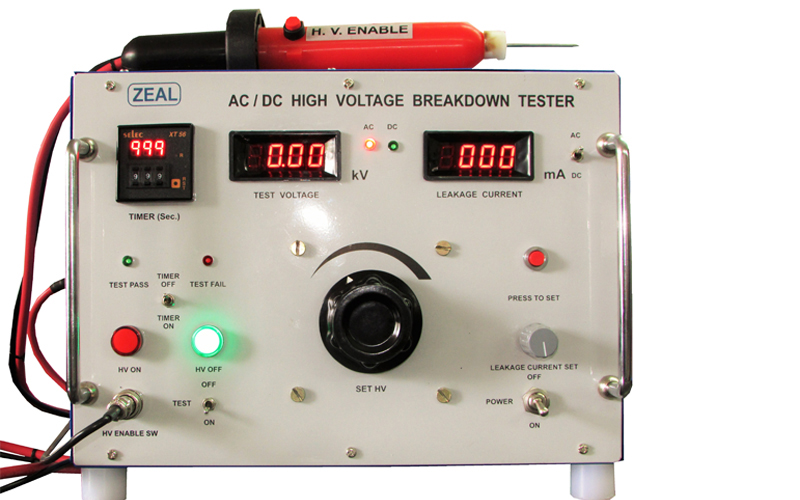

AC/DC High Voltage Breakdown Tester

Technical Specification

Make	ZEAL
Power	230V AC, 50 Hz
DC Voltage Range	0 to 5kV DC
DC Leakage Current Range	0 to 20mA
AC Voltage Range	0 to 5kV AC
AC Leakage Current Range	0 to 20mA AC/DC Selection by Slide window.
Test Voltage Range Settable	by knob of Variac
Trip Current setting	by press to set switch & potentiometer, using digital mA meter
Programmable Timer	0 to 999 second with timer ON/OFF switch.
Metering	3 ½ digit Digital kV and mA meter
Resolution	0.01kV, 0.1mA respectively
Accuracy	kV:2% of reading ± 3dgt, mA: 1.5% of reading ± 2 dgt, Time:±0.5 second
Features	• Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch
Indications	Trip, HV On, HV Off

AC / DC High Voltage Breakdown Tester

Rating	Model Series
5kV/10mA	ZMHV5A5D-10
5kV/20mA	ZMHV5A5D-20
5kV/30mA	ZMHV5A5D-30
5kV/50mA	ZMHV5A5D-50
5kV/100mA	ZMHV5A5D-100
5kV/500mA	ZMHV5A5D-500
10kV/20mA	ZMHV10A10D-20
10kV/30mA	ZMHV10A10D-30
10kV/50mA	ZMHV10A10D-50
10kV/100mA	ZMHV10A10D-100

Rating	Model Series
20kV/20mA	ZMHV20A20D-20
20kV/30mA	ZMHV20A20D-30
20kV/50mA	ZMHV20A20D-50
20kV/100mA	ZMHV20A20D-100
20kV/500mA	ZMHV20A20D-500
30kV/20mA	ZMHV30A20D-20
30kV/30mA	ZMHV30A20D-30
30kV/50mA	ZMHV30A20D-50
30kV/100mA	ZMHV30A20D-100
30kV/500mA	ZMHV30A20D-500

Note : We Can Upgrade Products With Time To Give Improved Quality
