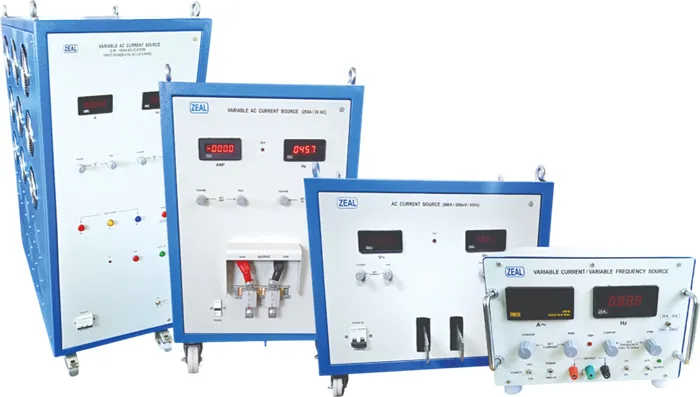

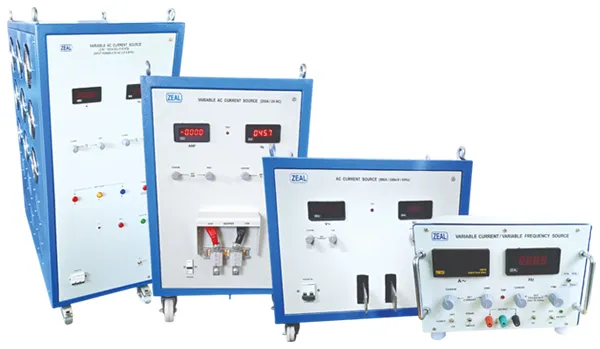

Variable Current / Variable Frequency Source

Variable Current / Variable Frequency Source

We are Manufacturer, Supplier, Exporter of Variable Current / Variable Frequency Source. This product also known as AC Current Source.



Technical Specification

Make
Zeal
Manufacturing Capacity
Up to 8000A
Input Power
230V AC, 50Hz; 415V AC (Ph-Ph), 50Hz (3Ph,4W)
Available Output Current Ranges
0 to 100A, 0 to 200A, 0 to 500A, 0 to 1000A, 0 to 1500A, 0 to 2000A, 0 to 2500A, 0 to 3000A, 0 to 4000A, 0 to 5000A, 0 to 6000A, 0 to 8000A adjustable or Customizable as per requirement
Burden
2V, 5V or as per Requirement
Output Frequency Range
45Hz to 65Hz or as per requirement
Setting of Current & Frequency
By multiturn Potentiometers
Meters
Digital Ammeter & Frequency meter to indicate output Current & Frequency
Accuracy
± 2 % at FS
Frequency accuracy
± 2 Dgt
Output THD
5%
Control Technology
IGBT or Linear
Cooling
Forced Air
Protection
Against Overburden & Open Circuit
Circuit Breakers
with appropriate Input & Output MCBs/MCCB's circuit breakers

Note : We Can customize output voltage, current and frenquency as per your requirement.

Typical Available Models & Ratings

Models O/P Current Rating Burden
ZMVCVFS-100A 0 to 100A 5V max
ZMVCVFS-200A 0 to 200A 5V max
ZMVCVFS-500A 0 to 500A 5V max
ZMVCVFS-1000A 0 to 1000A 5V max
ZMVCVFS-1500A 0 to 1500A 2V max
ZMVCVFS-2000A 0 to 2000A 2V max
ZMVCVFS-2500A 0 to 2500A 2V max
ZMVCVFS-3000A 0 to 3000A 2V max
ZMVCVFS-4000A 0 to 4000A 2V max
ZMVCVFS-5000A 0 to 5000A 1V max
ZMVCVFS-6000A 0 to 6000A 1V max
ZMVCVFS-8000A 0 to 8000A 1V max

Note : High Voltage & Haigh Current Range Can Be Customized As Per Requirements.

Note : We Can Upgrade Products With Time To Give Improved Quality
