We are Manufacturer, Supplier, Exporter of Digital Resistance Meters and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

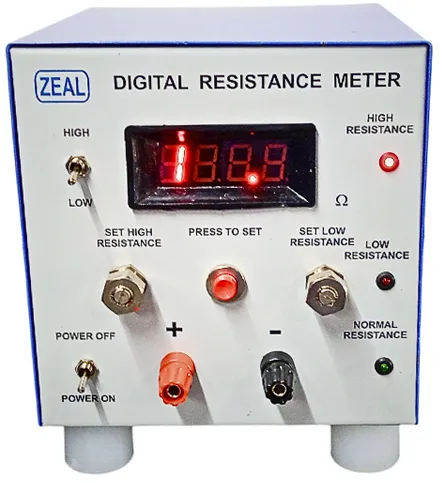

Technical Specification
Make
ZEAL
Model
ZMDRM
Power
230V AC, 50Hz, ± 10%
Range
0 to 100 Ω
0 to 1k Ω
0 to 10 k Ω
0 to 100 k Ω
Open circuit voltage : 5V typical
Setting & Indication
LED indicator for Low, high and normal (within specification) resistance value.
Setting parameter: knob shall be provided to set Low and High value of resistance
Display
Digital 4 digit 7 segment display
Accuracy
1.5% ± 3 digit
Buzzer
It will give sound when resistance value Low or High (out of specification).
With settable limits for lower & upper acceptance of resistance by potentiometer.
Note : We can customize Resistance Measurement range as per requirement
