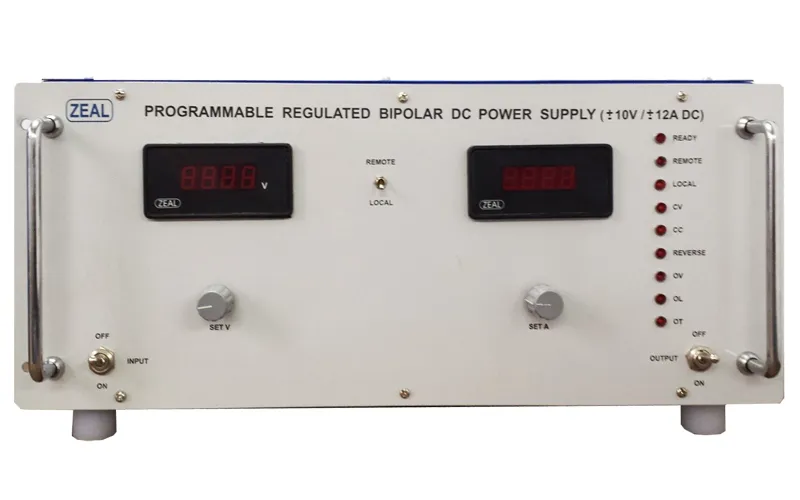

Make |
ZEAL |
Model |
ZMBPS |
Output Voltage |
0 to ±10V ( or Vmax. rated ) |
Output Current |
0 to ±12A ( or Imax. rated ) |
Input Voltage |
230V AC, ±10%, 50Hz Single Phase |
Enclosure |
19' rack mounted system or table top |
Type of cooling |
Forced air ( Cooling fan ) |
Output voltage load regulation |
±0.1% for specified line variations and no load to full load variations |
Output voltage program accuracy |
±0.1% of set value |
Output current regulation |
±0.1% for specified line variations and no load to full load variations |
Output voltage ripple ( RMS ) |
±0.05% of set value |
Output current ripple |
±0.05% of set value |
Output voltage noise |
±0.05% of set value |
Output current stability |
±0.05% per hour after nominal warm up time of less than 3 hours |
Output voltage |
Continuously adjustable in between - 10V to +10V or by panel mounted 10 - turn potentiometers. |
Remote sensing |
With 4 - wire system, 0.5 volt drop or more per wire |
Display voltage and current |
3.5 digits, better than 0.1% accurate |
Note : We Can Upgrade Products With Time To Give Improved Quality
