Three Phase Secondary Injection Kits

Three Phase Secondary Injection Kits Model : ZM3ØSIK

Three Phase Secondary Injection Kits

We are Manufacturer, Supplier, Exporter of Secondary Injection Kits (SIK) and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.



  • 230V AC, ±5% @ 50Hz, 1-phase.
  • 4½ digit meters to indicate set Current & Voltage.
  • Current & Voltage setting by Coarse and Fine multi-turn potentiometers.
  • Frequency setting by multi-turn potentiometer.
  • Power Factor setting by up & down Push Buttons.
  • Current Channel output ports (CT 1, CT 2 & CT3).
  • Voltage Channel output ports (L 1, L2,L3 & LN).
  • Output & Timer ON / OFF through toggle switch.
  • Power ON/OFF by switch.

Technical Specification

Model ZM3ØSIK
Input Power Supply 230V AC, ±5 % @ 50Hz
Output Voltage Range 0 to 300V (L-N) or 0 to 520 phase to phase
Output Current Range 0 to 6 A per phase continuous
Output Mode 3 Phase, 4 Wire
Output Ports L1, L2, L3 & LN, C T1 (Hi, Lo), CT2 (Hi, Lo), Ct2 (Hi, Lo).
PF Range 0.5 to Unity
Compliance 20VA at FS on Voltage range, 30VA at FS on Current range
Frequency 45 to 60Hz
Setting By Coarse and Fine potentiometers to set Voltage and Current.
By push button keys for Power Factor.
By potentiometer for frequency.
Metering Digital AC Voltmeter, Digital AC Ammeter, Universal meter to indicate PF, W, VA, VAr of each phase. Also average of all phase, Whr Programmable current display to accommodate any CT ratio
Accuracy class 0.15% (for V, A, W and Whr)
Sinusoidal Outputs THD 1.5%
Protections Overload and Short circuit.
Dimensions 550mm (W) X 560mm (D) X 200mm (H)
Weight 40kg. (Approx.)

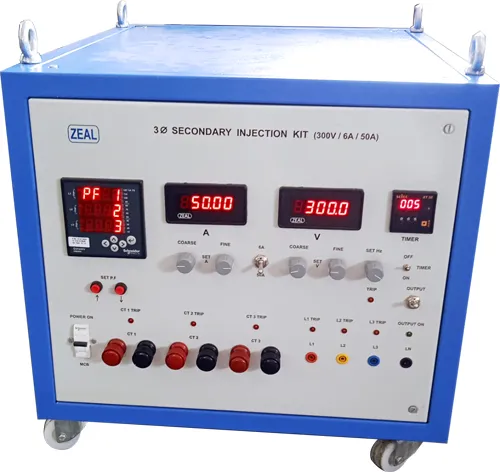

Three Phase Secondary Injection Kits Model : ZM3ØSIK-50

Three Phase Secondary Injection Kits

A three-phase secondary injection kits is a source of AC voltage, AC current, power factor, frequency, and time. Thereby, it is also a source of VA, VAr, W, VAhr, VArhr, and Whr. It has six different sine wave signals, which are synchronized with each other. Three of them are amplified and controlled as per set values to get phase to neutral voltages of three phases which are 120o phase shifted with each other. The other three sine wave signals are amplified and controlled as per set values to get currents of three phases which are 120o phase shifted with each other.



  • 230 V AC, ±5 % @ 50 Hz, 1-Phase
  • 4½ digit meters to indicate set Current & Voltage.
  • Current & Voltage setting by Coarse and Fine multi-turn potentiometers.
  • Frequency setting by multi-turn potentiometers.
  • Power Factor setting by up & down Push Buttons.
  • Current Channel output ports (CT1, CT2 & CT3).
  • Voltage Channel output ports (L1, L2,L3 & LN).
  • Output & Timer ON / OFF by toggle switch.

Technical Specification

Model ZM3ØSIK-50
Input Power Supply 230 V AC, ± 5 % @ 50 Hz.
Output Voltage Range 0 to 300 V (L-N) or 0 to 520 phase to phase
Output Current Range 0 to 6 A and 0 to 50A per phase continuous
Output Mode 3 Phase, 4 Wire
Output Ports L1, L2, L3 & LN, CT1 (Hi, Lo), CT2 (Hi, Lo), CT3 (Hi, Lo).
PF Range 0 (Lag) to Unity to 0 (Lead)
Compliance 20 VA at FS on Voltage ranges, 30VA at FS on 6A ranges and 250 VA at FS on 50A current ranges
Frequency 45 to 60 Hz
Setting By Coarse and Fine potentiometers to set Voltage and Current.
  By push button keys for Power Factor.
  By potentiometer for frequency.
  Current ranges selection by toggle switch
Metering Digital AC Voltmeter, Digital AC Ammeter, Universal meter to indicate PF, W, VA, VAr of each phase. Also average of all phase, Whr
Programmable current display to accommodate any CT ratio.
Accuracy Class 0.15% (for V, A, W and Whr)
Sinusoidal Outputs THD 1.5%
Protections Overload and Short circuit
Dimensions 550mm(W) X 650mm(D) X 450mm(H)
Weight 88 kg.Approx
