Decade Capacitance Boxes, Supplier, India

Model	ZMDCB
Capacitance Range	1nF to 100µF
Decades Of	1nF, 10nF, 100nF, 1µF, 10µF
Zero Capacitance	< 20 pF for 1 Year, After 1 Year add 2 pF per year, Maximum Zero Capacitance: 20pF
Accuracy	± 1.0 % @ 1kHz for all decades @ 25^oC ± 2^oC, RH: 30 to 75%
Operating Temperature	10^oC to 40^oC
Storage Temperature	5^oC to 70^oC
Drift due to ageing	100 PPM / year
Temperature drift	>0.01% / ^oC
Short Term Stability set value	300 PPM
Dimension	360mm(W) X 100mm(D) X 80mm(H)
Weight	2kg. (Approx.)

Note : We Can Upgrade Products With Time To Give Improved Quality

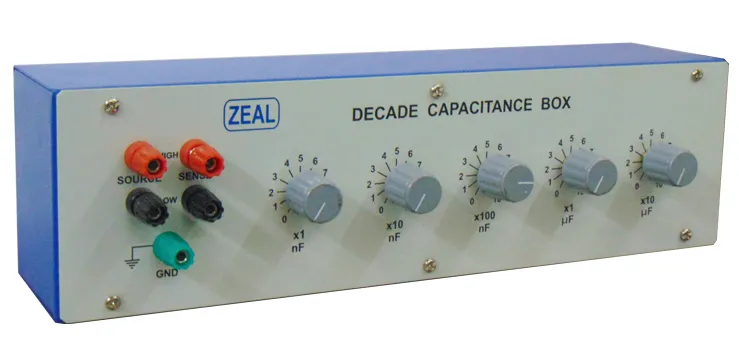

Decade Capacitance Boxes
