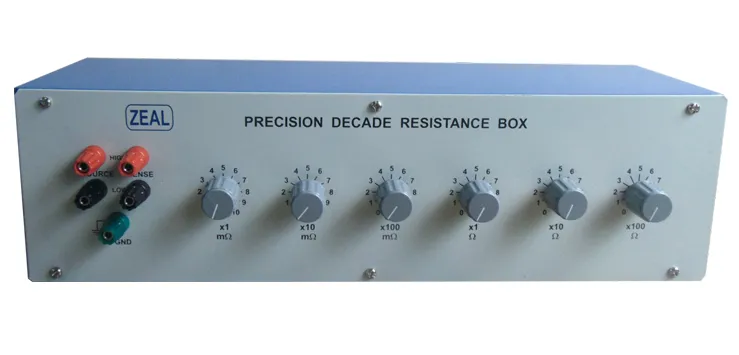

| Model | ZMPDRB | |
| Decades | 1mΩ, 10mΩ, 100mΩ, 1Ω, 10Ω, 100Ω | |
| Residual Resistance | < 15mΩ for 1 year, after 1 year add 2mΩ per year, Max residual resistance: 15mΩ | |
| Stability | 100 PPM (10Ω to 10MΩ) | |
| Operating Temperature | 10oC to 40oC | |
| Storage Temperature | 5oC to 70oC | |
| Drift due to ageing | 50 PPM | |
| Accuracy | Range | Accuracy: @ 20o to 28oC, RH <70% |
| X 1mΩ | ±2.5% | |
| X 10mΩ | ±1.5% | |
| X 100mΩ | ±0.5% | |
| X 1Ω | ±0.2% | |
| X 10Ω to X 100Ω | ±0.1% | |
| Dimension | 420mm(W) X 130mm(D) X 120mm(H) | |
| Weight | 2.5kg. (Approx.) | |
