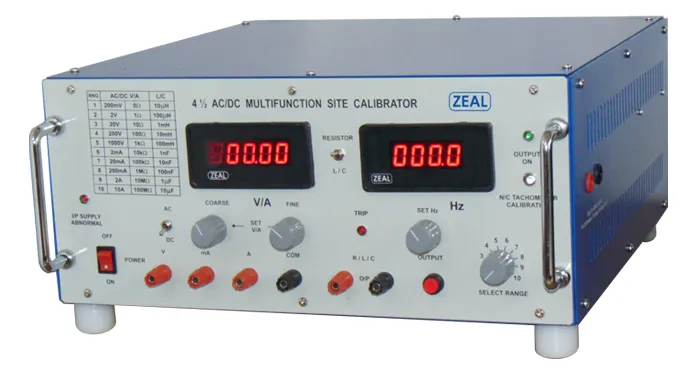

| Model | ZMSMFC 4.5 | |||
| Input Power Supply | 230V AC, ±5 % @ 50Hz. | |||
| Input Protection | Calibrator is Protected by I/P OV (Over Voltage) & I/P UV (Under Voltage) | |||
| DC Voltage Ranges | 200mV, 2V, 20V, 200V, 1000V | |||
| AC Voltage (45Hz to 1000Hz) Ranges | 200mV, 2V, 20V, 200V, 1000V | |||
| DC Current Ranges | 2mA, 20mA, 200mA, 2A, 10A | |||
| AC Current (45Hz to 1000Hz) Ranges | 2mA, 20mA, 200mA, 2A, 10A | |||
| Frequency | 45Hz to 1000Hz | |||
| Fixed Resistance | 1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ, 100MΩ | |||
| Fixed Inductance | 10µH, 100µH, 1mH, 10mH, 100mH | |||
| Fixed Capacitance | 1nF, 10nF, 100nF, 1µF, 10µF | |||
| RPM (Non Contact Type) | 60,000 RPM | |||
| Display | 4½ Digit 7 segment red LED display for Voltage & Current | |||
| 4 Digit 7 segment red LED display for Frequency | ||||
| Accuracy @ 15oC to 30oC, RH <75% | AC Voltage: 0.3% ± 10 Dgt | DC Voltage: 0.2% ± 5 Dgt | Frequency: ± 0.1 Hz | |
| AC Current: 0.3% ±10 Dgt | DC Current: 0.2% ±5 Dgt | |||
| Resistance: 0.5% | Capacitance: ±5% | Inductance: ±5% | ||
| RPM (Non Contact Type): ±0.1%, ±5 digit | ||||
| Selection of AC/DC Parameters | By Toggle switch | |||
| Selection of Resistor / L / C | By Toggle switch | |||
| Selection of Ranges | By rotary selector switch | |||
| Setting of Frequency | By multi turn potentiometer | |||
| Operating Temperature | 10oC to 40oC | |||
| Power OFF Storage Temperature | 5oC to 70oC | |||
| Dimension & Weight | 400mm(W) X 400mm(D) X 170mm(H) | 20kg. (Approx.) | ||
