We are Manufacturer, Supplier, Exporter of mV / mA / RTD Calibrator and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
| Make | ZEAL |
| Model | ZMPCM |
| Input Power | 230 VAC, 50Hz / 110 VAC, 60Hz |
| DC Voltage Source Range | 0 to 200 mV |
| DC Current Source Range | 0 to 20 mA |
| RTD Range | -500, -250, 00, +250, +500, +750, +1000, +2000, +3000 & +4000 |
| Controls | • Selector switch for mV/mA selection. • mV/mA setting by coarse & fine multiturn potentiometers. • RTD range selection by Decade Switch. |
| Metering | 4½ Digit, 7 Segment Display |
| Accuracy | mV/mA: 0.1% ± 3digit. RTD: 0.1% |
| Protection | Over Load & Short Circuit |
| Weight | 5 kg. |
| Make | ZEAL |

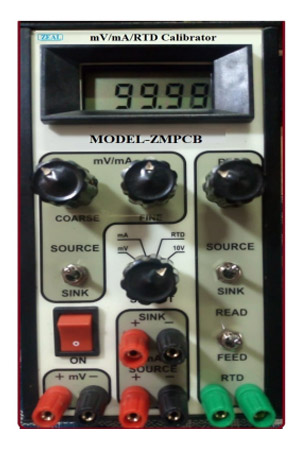

| Model | ZMPCB |
| Input Power | 9V x 2 Batteries 100mAH |
| DC Voltage Source & Measure Range | 0 to 200mV |
| DC Current Source & Measure Range | 0 to 20mA |
| RTD ( Fix 9 Positions ) | 0, 25, 50, 75, 100, 150, 200, 300, 400°C |
| Metering | 4½ Digit, LCD Type |
| Accuracy | For mV & mA: 0.1% ± 3 dgt, for RTD: 0.1% |
| Weight | 1 kg. |
Note : We Can Upgrade Products With Time To Give Improved Quality
