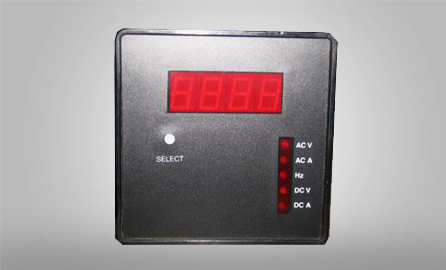

Digital UPS, Stabilizers, Genset Scanners |
| |
|
|
| |
|
| Dimension |
(96 x 96 x 50 ) mm |
| Panel Cutout |
( 92 x 92 ) mm |
| Power |
+ 5 V , Com. , - 5 V |
| Operating Temp. |
Ambient to 65o C |
| Features |
|
| |
|
- Electrical Isolation between all
parameters
- Parameter Selection by Push Button
Select Switch & bar of LEDs
- Gain, Offset setting for all
parameters are accessible.
|
| |
|
| Specification |
|
| |
|
| AC Voltage |
0 to 450 V AC |
( 0.75 % rdg + 1 dgt) |
1 Volt |
| AC Current |
As Per CT ratio |
( 0.75 % rdg + 1 dgt) |
0.1 Amp. |
| Frequency |
48 to 52 Hz |
( + 2
dgt) |
0.1 Hz |
| DC Voltage |
0 to 500 V DC |
( 0.75 % rdg + 1 dgt) |
1 volt |
| DC Current |
As per shunt ratio |
( 0.75 % rdg + 1 dgt) |
0.1 Amp. |
|
|
|
|
